Turbocharger Kit 1446 SFG series

Description

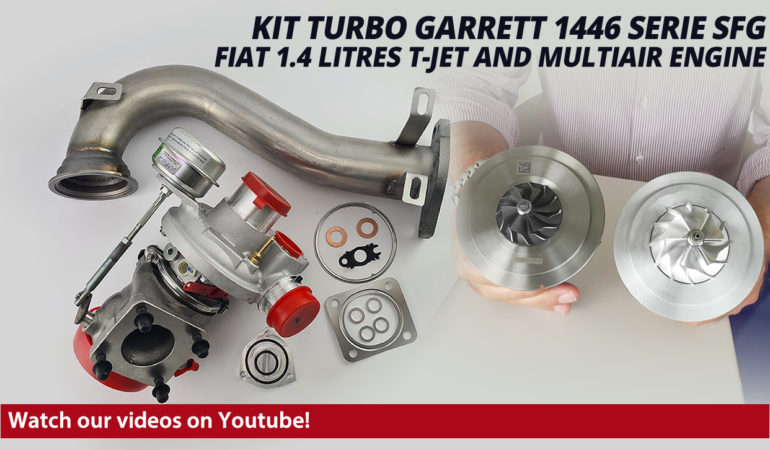

Turbocharger kit Garrett 1446 SFG series for T-jet and Multiair 1.4 Fiat engine
(suit also to Punto and 500 Abarth and other Fiat, Lancia, Alfa Romeo vehicles)


Garrett 1446 turbocharger is very popular among thousands of Fiat Abarth enthusiasts for the perfomance it is able to deliver to the small but gritty 1.4cc FIAT Engine. However, to offer more customization and achieve the desired performance, SAITO has created various steps to enhance this turbocharger in order get desidered performance increases. This new SFG Turbocharger series in thinked to complement the already well known Mitsubishi-based SFM Series and widen Saito’s offer to Abarth enthusiasts.

Stage 1 is called SFG190 and consists of a 1446 equipped with a Avional Machined Compressor wheel with revised aerodynamics. This allows to increase reliability and reduce inertia and consequently turbo lag. Stage 2, called SFG200, is an oversized 1446 equipped with more advanced compressor aerodynamics, the performance enhancement are excellent over the entire power range. Stage 3 is called SFG210 and consists of a total overhaul of the characteristics of the turbo and allows very consistent power gains while maintaining the engine compartment as per stock.

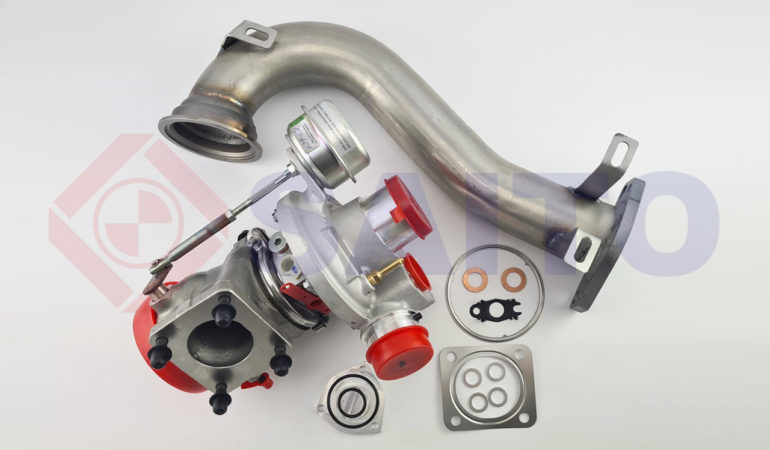

The kit includes:

TURBO
n.1 New and genuine Garrett 1446 turbocharger. Can be directly installed on Abarth 1.4L also with IHI standard turbocharger.
– STAGE 1 version – Indicative power 190cv with Ergal impeller
– STAGE 2 version – Indicative power 200cv with Ergal impeller
– STAGE 3 version – Indicative power 230cv with Ergal impeller
n.1 Pop-Off Cap

TURBOCHARGER ADAPTERS
n.1 Gas outlet manifold (downpipe) without catalyst
– optional 200 cell catalyst version
– optional thermal bandage of the chosen downpipe
n.1 Gasket Kit
n.1 Complete set of bolts and clamps (including Vclamp downpipe)

SENSORS
n.4 Oversized injectors kit 390cc
n.2 Sensors Kit (map sensor and mass / air sensor)

only for multiair engines with IHI VL38 turbo
OIL
n.1 Oil Adapter Kit
