Turbo 9F002
per motori EJ20, EJ20E, EJ20G, EJ25, EJ25E, EJ25G

Description

Section continuously updated with all the IHI Performance series turbines!

IHI VB43 “ELITE” TURBO

The Toyota GR Yaris engine, a 1.6-liter turbocharged petrol powerhouse, is a true feat of engineering. With 360 Nm of torque between 3,000 and 4,000 rpm, this three-cylinder engine delivers top-notch performance: 0-100 km/h in 5.5 seconds and a maximum speed of 230 km/h. For those seeking even more excitement, SAITO offers the IHI VB43 “ELITE” turbo, an upgraded version with ball bearings and an Avional compressor wheel for increased airflow capacity, greater resistance to rotor speed, and enhanced torque! Also available for the Toyota Corolla GR.

– Features an upgraded compressor impeller.

Compatible with the following models:

Toyota Yaris GR 1.6L
Toyota Corolla GR 1.6L

(For more information and component interchangeability verification, please contact our offices at 071715693 / info@saito.it)

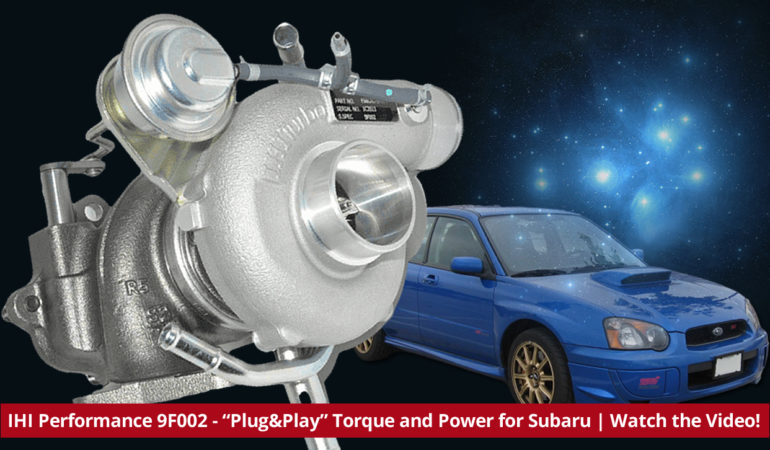

IHI 9F002 Turbocharger upgrade per IHI VF48

We present the IHI 9F002 turbine, a turbocharger developed for the Impreza WRX STI and other Subaru models equipped with the EJ25 and other popular engine models worldwide and in North America. The IHI 9F002 features an oversized compressor and high-performance aerodynamics, allowing it to deliver high torque at around 3000 RPM and a power output of approximately 360 horsepower (depending on the boost pressure and engine tuning). The IHI 9F002 improves the performance of Subaru Impreza WRX engines such as EJ20, EJ20E, EJ20G, EJ25, EJ25E, EJ25G, as well as other vehicles from the Japanese automaker, thanks to its use over the years on various cars with the same turbine-to-manifold and gas outlet flange connections. This feature enables a “plug&play” installation of the IHI 9F002 on your car at an affordable cost! (Some adjustments will be required for fuel introduction, ECU management, and potentially upgraded injectors).
– It is equipped with an oversized compressor impeller;
– The larger-sized compressor housing employs a double seal structure, further enhancing the supercharging efficiency;
– The installation is fully compatible with the original turbocharger

Compatible with the following models:

Subaru Impreza WRX STI 2.0/2.5L STI A-LINE GRF/GVF – upgrade for the original turbo code: VF48
Subaru Forester STI SG9 C~F Type 2004-2007 – upgrade for the original turbo code: VF41
2002-06 Subaru WRX with EJ20, EJ25 Engine
2004- Subaru Impreza WRX STI with EJ20, EJ20E, EJ20G Engine
2004-07 Subaru WRX STI with EJ20, EJ25 Engine
2008-13 Subaru WRX STI with EJ25 Engine (USA STI only, J-Spec STI has a different flange type)
2015-17 Subaru Impreza WRX STI with EJ25E, EJ25G Engine

(For more information and component interchangeability verification, please contact our offices at 071715693 / info@saito.it)

Buy it in the ONLINE SHOP

TURBO IHI IS38 upgrade per IHI IS12 e IS20

The IHI IS38 (9VA04) turbocharger, factory-installed on turbocharged gasoline vehicles such as the Audi S3, Audi SQ2, Audi TTS, Seat Ateca, Seat Leon, Skoda Superb, Volkswagen Arteon, Volkswagen Golf, and Volkswagen Passat, is a ball-bearing turbine that is well-suited for direct installation upgrades (commonly referred to as “Plug & Play”) on the aforementioned vehicles. It also serves as a valuable upgrade for turbochargers with lower performance, such as the IHI IS20 and IHI IS12.

SAITO, the authorized distributor for the IHI brand in Italy, is available to supply the new IHI IS38 / IHI 9VA04 turbo both as an original replacement and as a crucial component for tuning/racing solutions aimed at achieving power outputs exceeding 400 horsepower.

TURBO SPECIFICATIONS
Turbo Manufacturer: IHI
Manufacturer Codes: IS38 / 9VA04
OEM Codes: 06K145702H, 06K145702J, 06K145702M, 06K145702N, 06K145722A, 06K145722H, 06K145722P, 06K145722T, 06K145874F, 06K145874N, F51CEG-SR023B
Engines: CJXA, CJXB, CJXC, CJXE, CJXG, CJXH, CYFB, DJHA, DJHB, DNUA, DNUE, DNUF

Vehicles:
