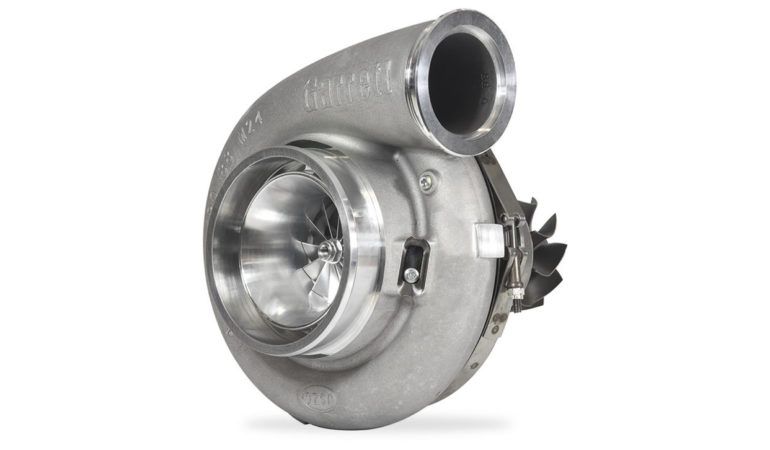

GTX Series GTX5009R GEN II 76mm

GTX Series GTX4720R GEN II: the most powerful Large-Frame Turbocharger

Information

  • Horsepower: 875 - 1700 CV
  • Displacement: 2.5L - 10.0L
  • Gen II compressor wheel aerodynamics
  • 76mm compressor inducer | 109mm compressor exducer
  • 99mm turbine inducer | 91mm turbine exducer
  • 15% increased flow
  • Larger .88 a/r compressor housing volute
  • GTX5009R features a 109mm comp exducer ( + 1mm) and has 39% lower inertia
  • Supercore and turbine housing sold separately
  • Compatible with gt and gtx turbine housings
  • 76mm Supercore pn: 851285-5016s
  • ☎ Call: +39 071715693
  • ✉ Send e-mail: info@saito.it
  • 🌏 Worldwide delivery!

Description

GTX5009R GEN II Compressor Turbine
HP: 875-1700 Disp: 2.5L-10.0L Inducer Exducer Trim A/R Inducer Exducer Trim
Supercore PN
851285-5016S 76mm 109mm 49 0.88 99mm 91mm 84
851285-5017S 80mm 109mm 54 0.88 99mm 91mm 84
Turbine Kits: GTX50 PN A/R Inlet Outlet Wastegate Divided
Interchangeable with GT|GTX 5008 5009
5018 5020 Supercores
761208-0030 0.96 T6 V-Band Free Float N
761208-0031 1.08 T6 V-Band Free Float N
761208-0032 1.23 T6 V-Band Free Float N
761208-0033 1.39 T6 V-Band Free Float N



About Garrett Performance GTX Series Turbochargers

Garrett GTX Series turbochargers are designed specifically for the hard-core enthusiast who wants optimal performance. The forged fully-machined billet aluminum compressor wheels feature next generation aerodynamics that provide a larger horsepower range and maximize boost response.

Ported shroud compressor housings increase surge resistance and provide reliable, continuous power throughout the power band. A dual ceramic ball bearing cartridge prolongs the lifespan and improves shaft balance. The water cooled CHRA keeps housing temperatures to a minimum. The turbine wheel is constructed from Inconel, a Super Alloy that maintains strength during prolonged exposure to high exhaust gas temperatures.

Turbine kits are offered in open volute and twin scroll, and a variety of A/R and flange configurations. GTX Series turbochargers are used by today’s top motorsports teams and are ready to boost you to the podium or wherever your destination may be.
