Information
- Horsepower: 200 - 475CV
- Displacement: 1.4L - 2.5L
- GEN II Aerodynamics Feature Increased Horsepower Range
- 46mm Turbocharger Compressor Option
- Improved Ported Shroud Design For Surge Resistance
- New Fully Machined Speed Sensor Port
- ☎ Call: +39 071715693
- ✉ Send e-mail: info@saito.it
- 🌏 Worldwide delivery!
- BUY ONLINE
Description
| GTX2860R GEN II | Compressor | Turbine | ||||||
|---|---|---|---|---|---|---|---|---|
| Inducer | Exducer | Trim | A/R | Inducer | Exducer | Trim | ||
| HP: 200-475 Disp: 1.4L-2.5L | 46mm | 60mm | 58 | 0.60 | 54mm | 47mm | 76 | |
| Supercore | Assembly Kit | Turbine Kit | A/R | Inlet | Outlet | Wastegate | Divided | |
| 849894-5001S | 856800-5001S | 827690-0001 | 0.57 | V-Band | V-Band | Free Float | N | |
| 856800-5002S | 827690-0002 | 0.72 | V-Band | V-Band | Free Float | N | ||
| Assembly Kit PN Includes | 856800-5003S | 827690-0003 | 0.64 | T25 | 5 bolt | Wastegated | N | |
| Supercore and Turbine Kit | 856800-5004S | 827690-0004 | 0.86 | T25 | 5 bolt | Wastegated | N | |
GTX GEN II: The Next Generation in Turbocharging Technology!

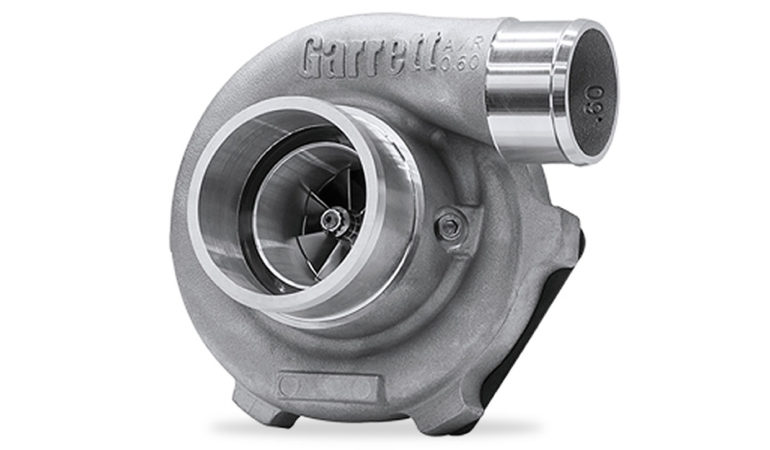

Garrett Motion is excited to introduce the GTX2860R GEN II Turbocharger. The GTX GEN II is the next evolution of our GTX line with major updates and new technology. Updates include a compressor wheel aero update that gives it the ability to produce up to 20% more horsepower than the previous version.
Cross Compatibility with Turbo Turbine Housing Kits
All GTX GEN II series turbochargers are compatible with all existing GT and GTX turbine housings kits. GEN II turbochargers are only offered through Garrett Motion authorized distribution centers.
