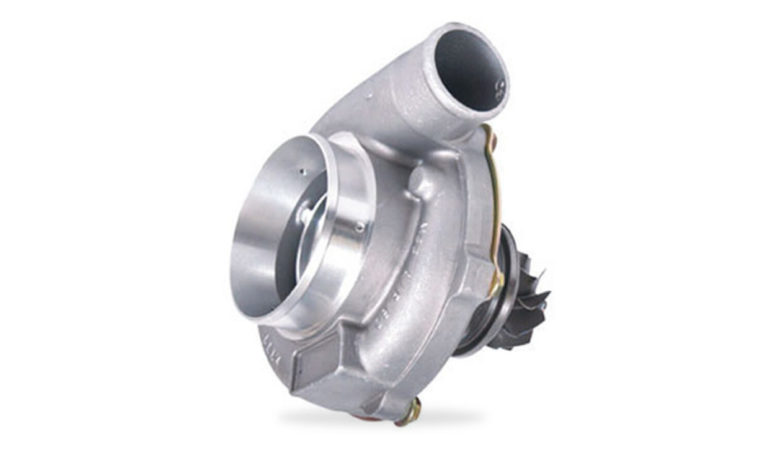

GT Series GT3076R

GT Series GT3076R: High Power in a Small Build

Information

  • Horsepower: 310 - 525CV
  • Displacement: 2.0L - 3.5L
  • Original GT series aerodynamics
  • 57mm turbocharger compressor option
  • Internally wastegated turbine housing
  • Non wastegated turbine housings available
  • Ball bearing configuration with water cooled chra
  • V-band turbine housing options
  • ☎ Call: +39 071715693
  • ✉ Send e-mail: info@saito.it
  • 🌏 Worldwide delivery!

Description


GT3076R Compressor Turbine
Inducer Exducer Trim A/R Inducer Exducer Trim
HP: 310-525 Disp: 2.0L-3.5L 57mm 76mm 56 0.60 60mm 55mm 84
Supercore PN PN
836028-5003S
Turbine Kits: GT30 PN A/R Inlet Outlet Wastegate Divided
Interchangeable with GT, GTX Gen I,
and GTX Gen II 30 Series Supercores
740902-0009 0.63 T3 V-Band Free Float N
740902-0008 0.82 T3 V-Band Free Float N
740902-0007 1.06 T3 V-Band Free Float N
740902-0036 0.61 V-Band V-Band Free Float N
740902-0035 0.83 V-Band V-Band Free Float N
740902-0034 1.01 V-Band V-Band Free Float N
PN A/R Inlet Outlet Wastegate Divided
Wastegated turbine assembly does not include bolts, clamps, or actuator 771300-0006 0.63 T3 5 bolt Wastegated N
771300-0005 0.82 T3 5 bolt Wastegated N
771300-0004 1.06 T3 5 bolt Wastegated N



About Garrett Performance GT Series Turbochargers

Garrett GT Series is the name that pioneered turbo technology and boosted drag racing and road racing teams to break hundreds of world records.

The GT Series lineup is offered in both journal and ball bearing options, and sizes ranging from GT2052 to GT3582. The cast compressor wheels feature original GT Series aerodynamics and provide maximum durability and longevity. Internally wastegated turbine housing options are available in all GT Series sizes. Turbine kits are offered in open volute and twin scroll, and a variety of A/R and flange configurations.

For any performance need, GT Series turbochargers have you covered!
