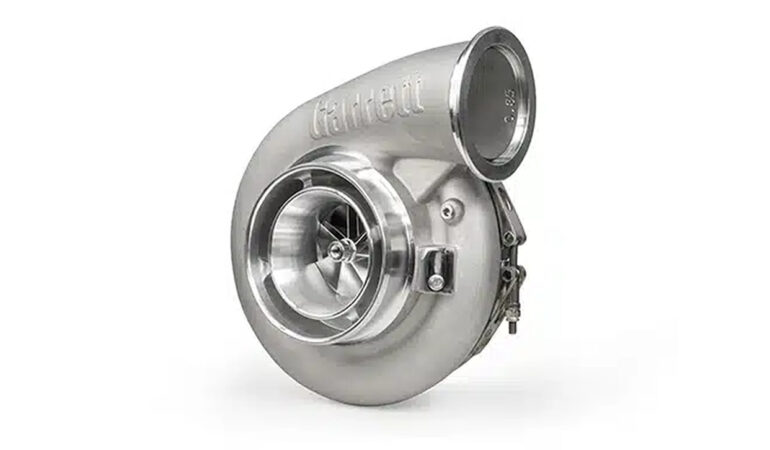

G-XRace GXR45-73 73.9mm

If you want to be the quickest, the G-XRace Series is your ultimate advantage

Information

  • Horsepower: 750 - 1550
  • Displacement: 2.0L - 8.0L
  • XBoost Technology increases power and performance
  • +11% compressor flow (GXR45-73 compared to G45-1350)
  • Enhanced pressure ratio capability and higher boost pressure
  • Increased efficiency at high flow rates
  • Lower intake temperature
  • 73.9mm compressor inducer | 102mm compressor exducer
  • For use in drag racing classes with compressor wheel inducer limits 73.9. Please verify class rules before purchasing
  • Lightweight aluminum backplate
  • Twin-scroll T4 and V-band turbine inlet flanges available to meet the needs of racers with different engines and manifold designs
  • GXR45-73 Supercore PN 934173-5004S
  • ☎ Call: +39 071715693
  • ✉ Send e-mail: info@saito.it
  • 🌏 Worldwide delivery!

Description

GXR45-73 Compressor Turbine
Inducer Exducer Trim A/R Inducer Exducer Trim
HP: 750-1550 Disp: 2.0L-8.0L 73.9mm 102mm 52 0.85 89mm 82mm 84
Supercore PN
Standard Rotation 934173-5004S
Turbine Kits: PN A/R Inlet Outlet Wastegate Divided
Free Float Turbine Housing 757707-0019 1.01 V-Band V-Band Free Float N
757707-0020 1.15 V-Band V-Band Free Float N
757707-0021 1.28 V-Band V-Band Free Float N
757707-0022 1.44 V-Band V-Band Free Float N
757707-0023 1.01 T4 V-Band Free Float Y
757707-0024 1.15 T4 V-Band Free Float Y
757707-0025 1.28 T4 V-Band Free Float Y
757707-0026 1.44 T4 V-Band Free Float Y




G-XRace Compressor Stage

G-XRace compressor stage delivers enhanced pressure ratio capability and higher boost pressure with XBoost technology. You will notice increased efficiency at high flow rates and lower intake temperatures.

G-XRace Turbine Housing Kits

G-XRace GXR45 turbine housing kits are available in four A/R. 1.01 A/R | 1.15 A/R | 1.28 | 1.44 A/R stainless steel housings with T4 divided or V-Band turbine inlet flanges.
