Information
- Horsepower: 875 - 1700CV
- Displacement: 2.5L - 11.0L
- Outline interchangeable with GTX Gen II turbos
- Supports up to 1700 flywheel horsepower
- 80mm | comp ind | 109mm comp exd
- High flow, high efficiency GTX Gen II comp aero
- G-Series turbine wheel aero increases performance compared to GTX47 Gen II. Flow: up to 23% more; Spool: up to +12% (estimated by flow, efficiency, and inertia).
- One-piece lightweight aluminum center hsg/backplate
- Outlet length on T6 turbine hsg reduced 17mm compared to GTX to optimize weight reduction
- G50-1700 Part Number: 880547-5027S
- ☎ Call: +39 071715693
- ✉ Send e-mail: info@saito.it
- 🌏 Worldwide delivery!
Description
| G50-1700 | Compressor | Turbine | |||||
|---|---|---|---|---|---|---|---|
| Inducer | Exducer | Trim | A/R | Inducer | Exducer | Trim | |
| HP: 875-1700 Disp: 2.5L-11.0L | 80mm | 109mm | 54 | 0.88 | 99mm | 94mm | 90 |
| Supercore | PN | ||||||
| Standard Rotation | 880547-5027S | ||||||
| Turbine Kits: G50 | PN | A/R | Inlet | Outlet | Wastegate | Divided | |
| Interchangeable with G-Series G50 supercores | 761208-0079 | 0.96 | T6 | V-Band | Free Float | N | |
| 761208-0080 | 1.08 | T6 | V-Band | Free Float | N | ||
| 761208-0081 | 1.23 | T6 | V-Band | Free Float | N | ||
| 761208-0082 | 1.39 | T6 | V-band | Free Float | N | ||

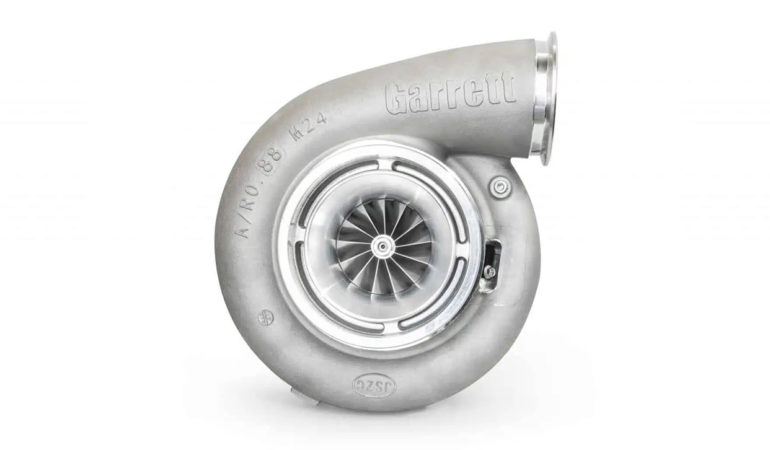

G-Series G50-1700: The Most Powerful Large-Frame Turbocharger
G Series G50 is available in 2 configurations. 80mm 109mm | 88mm 120mm compressor measurements. All G-Series G50 models are interchangeable meaning the supercore can be swapped into any turbine housing out without having to reconfigure any other turbo kit parts.
Understanding the Name: G50-1700
G designates 81 years of Garrett® heritage.
50 classifies the size of the frame.
The remaining 4 digits identify the max horsepower rating of the turbocharger. (ie 1700)
