Information
- Horsepower: 975 - 1850CV
- Displacement: 2.5L - 10.0L
- Outline interchangeable with GTX Gen II turbos
- Supports up to 1850 flywheel horsepower

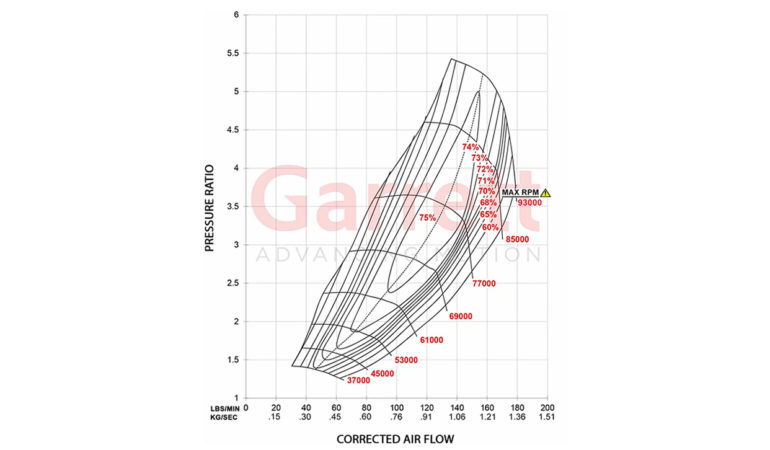

- 88mm | comp ind | 120mm comp exd
- High flow, high efficiency GTX Gen II comp aero
- G-Series turbine wheel aero increases performance compared to GTX47 Gen II. Flow: up to 20% more; Spool: up to +9% (estimated by flow, efficiency, and inertia)
- One-piece lightweight aluminum center hsg/backplate
- Outlet length on T6 turbine hsg reduced 17mm compared to GTX to optimize weight reduction
- G47-1850 Part Number: 880547-5026S
- ☎ Call: +39 071715693
- ✉ Send e-mail: info@saito.it
- 🌏 Worldwide delivery!
Description
| G47-1850 | Compressor | Turbine | |||||
|---|---|---|---|---|---|---|---|
| Inducer | Exducer | Trim | A/R | Inducer | Exducer | Trim | |
| HP: 975-1850 Disp: 2.5L-10.0L | 88mm | 120mm | 54 | 0.88 | 93mm | 88mm | 90 |
| Supercore | PN | ||||||
| Standard Rotation | 880547-5026S | ||||||

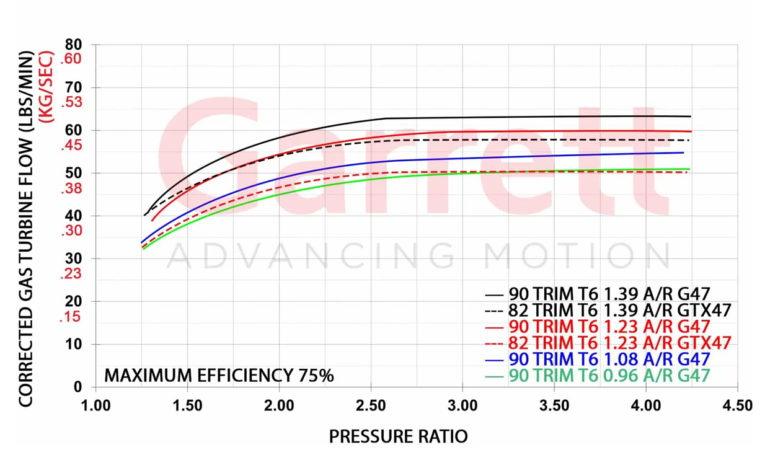

| Turbine Kits: G47 | PN | A/R | Inlet | Outlet | Wastegate | Divided | |
| Interchangeable with G-Series G47 supercores | 761208-0075 | 0.96 | T6 | V-Band | Free Float | N | |
| 761208-0076 | 1.08 | T6 | V-Band | Free Float | N | ||
| 761208-0077 | 1.23 | T6 | V-Band | Free Float | N | ||
| 761208-0078 | 1.39 | T6 | V-band | Free Float | N | ||

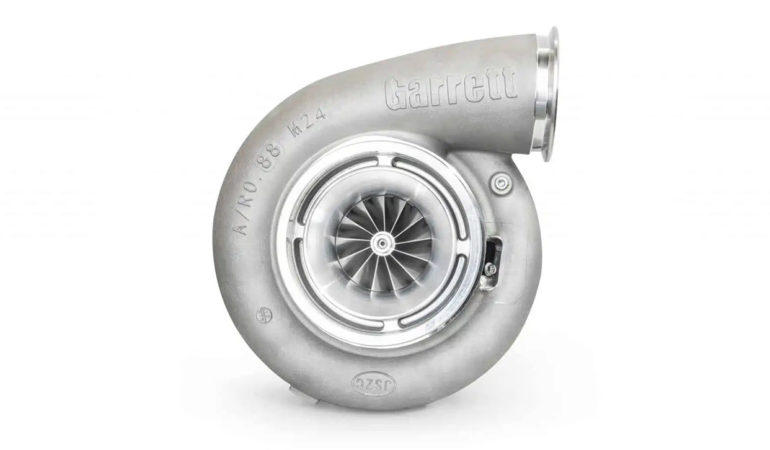

G-Series G47-1850: The Most Powerful Mid-Frame Turbocharger
G Series G47 is available in 4 total configurations. 76mm 109mm | 80mm 109mm | 80mm 120mm | 88mm 120mm compressor measurements. All G-Series G47 models are interchangeable meaning the supercore can be swapped into any turbine housing out without having to reconfigure any other turbo kit parts.
Understanding the Name: G47-1850
G designates 81 years of Garrett® heritage.
47 classifies the size of the frame.
The remaining 4 digits identify the max horsepower rating of the turbocharger. (ie 1850)
