Dual-Clutch 202893

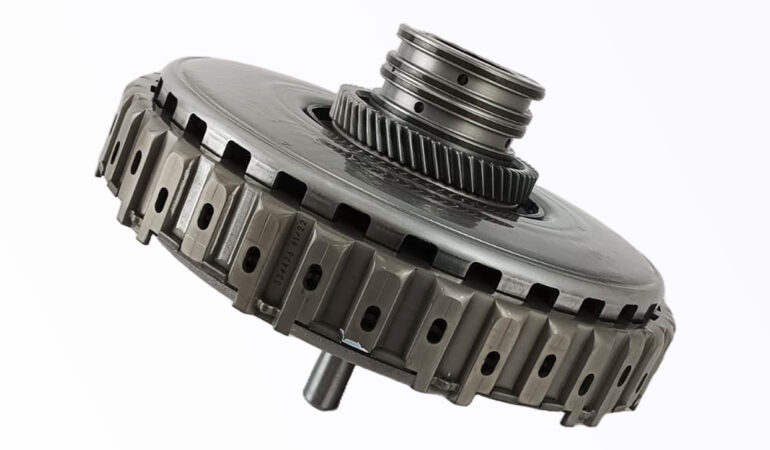

The Dual Clutch Transmission (DCT) is so named for the presence of two separate clutches connected to two coaxial shafts. On one of the shafts, the gears for odd-numbered ratios are mounted, while on the other, gears for even-numbered ratios are mounted (1, 3, and 5 on one shaft, and 2, 4, and 6 on the other in the case of a 6-speed transmission). The reverse gear, mounted on one of the two shafts, is equipped with a shaft for reversing the direction of rotation. With this type of clutch, the transmission’s work is divided and split between the two pairs of clutches and shafts, reducing shift times, allowing for quicker accelerations, and maintaining the engine in its power band. This provides advantages in terms of smooth power transmission since the engine undergoes much more controlled speed changes, significantly increasing comfort. Currently, all major automotive manufacturers adopt this type of technology.

The car’s clutches are vital for the transmission, as they control the engine power and the vehicle speed. They connect/disconnect the engine and the gearbox, facilitating gear changes. Composed of two discs – the engine disc attached to the engine, and the release disc attached to the gearbox – the clutch pedal, when pressed, separates the discs, interrupting the power flow to change gears without damage. While driving, the pedal allows disengagement of the engine for gear changes, requiring precise coordination for smooth transitions. Subject to wear, the clutch requires regular maintenance and careful driving to extend its life, ensuring reliable performance and driving comfort.
